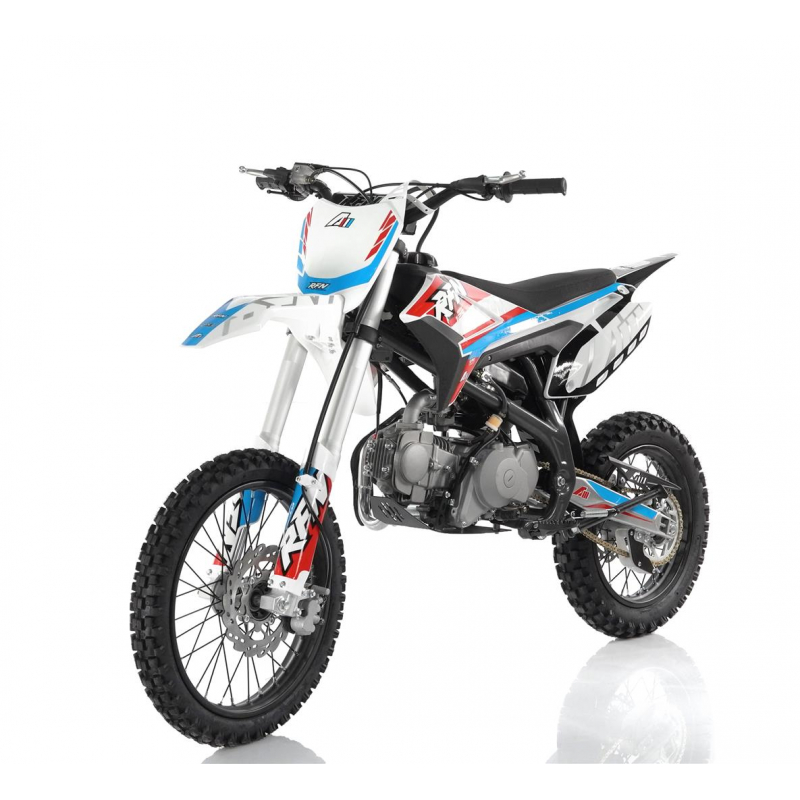

125cc RFN Thunder Dirt Bike - Big Wheel - 17"/14"
Key Features -
- Genuine YX 125cc engine
- Manual 4 speed transmission (N-1-2-3-4)
- Front & rear hydraulic brakes with wavy discs
- Latest technology 32mm tubular & profiled frame
- 17” Front & 14” Rear wheels with rimlocks
- VOLT™ V-ONE front & rear suspension
- Sports exhaust system
For older, more experienced riders we also offer a similar pit bike with a 140cc manual transmission engine - 140cc RFN™ Thunder Dirt Bike - XL Wheel - 19"/16"

-------------------------------------------------------------------------------------------------------------------------------------------
Dirt bikes & associated products are strictly for off road use only & should NEVER under any circumstances be used on the road. Riders should always observe the essential warnings & safety advice supplied with these products & should only operate the motorcycles when wearing full body safety equipment & helmet. If in doubt, please contact us & we will be more than happy to help.
This product is supplied with a 90 day manufacturers parts only defect warranty.
-------------------------------------------------------------------------------------------------------------------------------------------
Product images are for illustrative purposes only and sometimes actual colour shades, decals and styles may differ from the actual product. If you require confirmation then just give us a call.
General Specifications
| WEIGHT | 93kg |
|---|---|
| SEAT HEIGHT | 840mm |
| WHEELBASE | 1220mm (+/- 10mm) |
| GROUND CLEARANCE | 330mm |
| FRONT SUSPENSION | VOLT V-1 770mm (210mm TRAVEL) |
| REAR SUSPENSION | VOLT V-1 350mm (50mm TRAVEL) ADJUSTABLE |
| SWING ARM | HIGH STRENGTH STEEL WITH NEEDLE CAGE |
| FRONT BRAKE | HYDRAULIC PISTON - 220mm VENTILATED WAVY DISC |
| REAR BRAKE | HYDRAULIC PISTON - 190mm VENTILATED WAVY DISC |
| FRONT / REAR WHEEL | 17" / 14" HIGH STRENGTH STEEL (WITH RIMLOCK) |
| FRONT / REAR TYRE | TBC |
| SEAT | TBC |
| HANDLE BAR / CLAMPS | 28.6mm STEEL - FAT BAR / ALLOY TRIPLE |
| GRIPS | APOLLO |
| FRAME | PROFILED 35MM OVERSIZE TWIN TUBULAR |
| MAX RIDER WEIGHT | 95KG |
Engine & Transmission Specifications
| ENGINE | 125cc - LEADING YX BRAND |
|---|---|
| TRANSMISSION | 4 GEARS (N-1-2-3-4) |
| ENGINE TYPE | 4 STROKE - SINGLE CYLINDER - KICK START |
| BORE X STROKE | 52.4mm x 55.5mm |
| OIL CAPACITY | 900ml (15w/30) |
| CARBURETOR | MIKUNI VM22 (22mm) |
| CLUTCH | WET CLUTCH - MULTI PLATE |
| IGNITION | CDI |
| CHAIN | 428-110 KMC REINFORCED |
| REAR SPROCKET | 41 TEETH (428) |
| FRONT SPROCKET | 15 TEETH (428) |
| EXHAUST | SPORTS |
| FUEL TANK | 3.2L |
| BATTERY | N/a (KICKSTART) |
| TOP SPEED | TBC |
Key Safety Features
- Adjustable speed limiter on throttle
- Removable keys – no sneaky riding while you sleep!
- CE Approved & safety plated
- Safety approved & correct fitment of helmet
- Eye protection such as shatterproof goggles
- Race suit or long sleeved top and full length bottoms
- Boots such as over-the-ankle style
- Gloves
Please see some general safety information on the link below -
http://www.stormbuggies.com/safety
Please see a guide to our full warranty policy on the link below -
http://www.stormbuggies.com/
Please note that the guarantee / warranty is 'Return to Base' (RTB). The cost to return the goods to us and the delivery back of the goods are the responsibility of the purchaser.
Please also note that the guarantee / warranty will be void if the vehicle is not serviced in line with the servicing policy, or if the vehicle is used outside of its guidelines. For example, electric vehicles are for DRY USE ONLY.
Add your items to the cart
Proceed to checkout and choose Klarna
Enter your debit/credit card details Klarna's Pay in 3 / Pay in 30 days are unregulated credit agreements. Borrowing more than you can afford or paying late may negatively impact your financial status and ability to obtain credit. 18+, UK residents only. Subject to status. Ts&Cs and late fees apply.
Unless selecting the 'Assembly & PDI' option, this product will be supplied in boxed (basic kit form) for home assembly.
Depending on work rate, the assembly will generally take 1-2 hours. All of the more difficult parts such as the electrics are already pre-assembled at the factory. The basic assembly required is comprised of the larger items such as the front wheel, handlebars and front shock absorber.
Whilst generally described as basic assembly, for safety purposes we strongly recommend that the assembly and pre ride safety testing (also known as PDI) is carried out by an experienced mechanic / technician that is competent to work on motorcycles and carry out basic adjustments if needed.
Extremely Important – Full Nut and Bolt Check
When assembling any new vehicle, and as a part of the vehicle’s ongoing basic maintenance, it is extremely important that a FULL nut & bolt check is carried out. A comprehensive nut & bolt check is crucial for ensuring the vehicle is safe to ride from the box, and for preventing potential mechanical failures caused by vibration during use.
Please DO NOT assume that all the nuts & bolts on the vehicle are adequately tightened.
We also strongly recommend that where a Nyloc type of nut is not present, please ensure that thread lock adhesive is applied to the nut. We use the ‘Loctite’ brand, with great success.
Working from the front to the back of the vehicle, it is extremely important that EVERY nut and bolt is checked for adequate tightness.
Please pay particular and close attention to the following parts (where relevant) on the vehicle –
• Wheel & axle nuts
• Brake caliper bolts
• Brake disc bolts
• Brake hose fixings
• Triple clamp bolts
• Handlebar clamp mounts
• Lever clamp bolts
• Pedal bolts
• Shock bolts
• Shock clamp bolts
• Steering stem fixings
• Tie rod (steering) arms
• Chain tensioners
• Sprocket
• Engine / motor mountings
• Exhaust mountings & manifolds
• Pedal mountings
• Swing arm bolts
• Suspension arm bolts
• Wheel spokes
• Throttle, clutch & choke cable fixings
Following these essential steps will not only ensure rider safety, but also the long-term longevity of your vehicle.
